Foshan Zhongji Environmental Protection Equipment Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Zhongji |
| Model Number : | LDZK-0.01-0.7 |
| Certification : | ISO9001, GB |
| Price : | USD450/set |
| Payment Terms : | Western Union, L/C, T/T, MoneyGram |
| Supply Ability : | 2000set per month |
| Delivery Time : | 5-8 working days |
Product Name: High Pressure Electric Steam Generator
Item No.: LDZK-0.01-0.7
Characteristics:
1. Easy maintenance: daily maintenance, only need to drain once or twice a day when off work.
2. Low noise: quiet operation, effectively improving the working environment.
3. Convenient operation
4. Environmental protection: The emission of carbon monoxide is zero

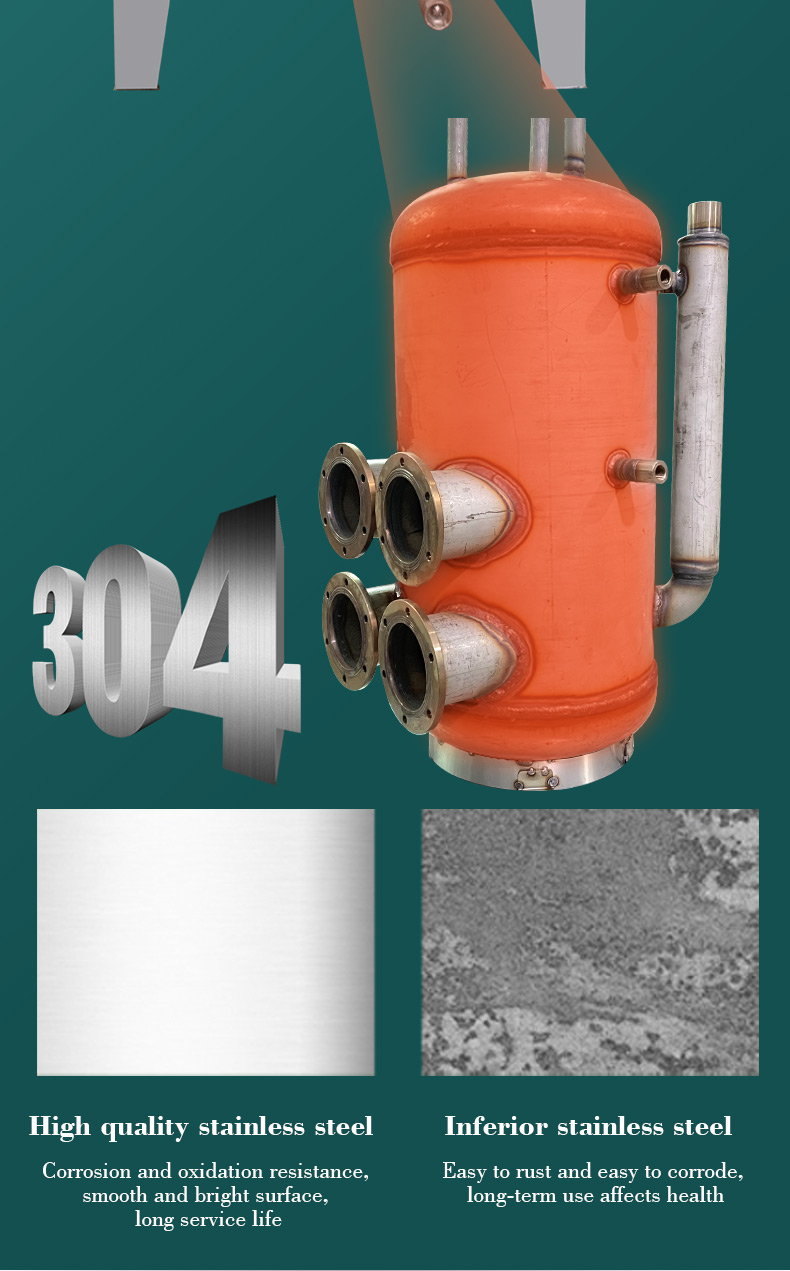

5. Durable: all stainless steel material, overall reduction of material oxidation, long service life.
6. Small size: light and handy, easy to install, and does not occupy working space.
7. Safety: There are 6 major functions such as water cut, overheating, overtemperature, overpressure, Safety measures, all-round protection.
8. Wide applicability: suitable for catering industry, hospital disinfection, sauna, school canteen, greenhouse equipment, hair salons, dishwashers, food processing factories etc.
Technical Parameter
| LDZK-0.01-0.7 | |
| Evaporation capacity | 10KG |
| Power | 6KW |
| Related voltage | 0.7MPa |
| Steam temperature | 170℃ |
| Input power supply | Single phase 3 wires 220V/3 phase 5 wires 380V |
| Alternating current | |
| frequency:50Hz | |
| Leakage switch | 32A-40A |
| Electric current | 12A(220V)/9A(380V) |
| Main power cord | 6 Square mm standard copper wire |
| Control | Gear 2(220Vand380V Universal version) |
| Machine size | 660*400*1220mm |
| Machine weight | 70KG |
| Water capacity | 26L |
| structure | External water pump of auxiliary water tank |
| Power of water pump | 550W |
| Diameter of water intake | DN15 |
| Diameter of sewage outlet | DN25 |
| Diameter of steam outlet | DN15 |
| Diameter of safety valve | DN15 |
| Power consumption /hour | 6KW |
| Materials | Inner material-SUS 304,outer- SUS 201 |
| Heater(Qty) | Single heater |
|
|
