Foshan Zhongji Environmental Protection Equipment Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Zhongji |
| Model Number : | ZQJ-300KG-0.7Mpa |
| Certification : | ISO, GB |
| Price : | USD5228/set |
| Payment Terms : | Western Union, MoneyGram |
| Supply Ability : | 1000set/month |
| Delivery Time : | 5-8 working days |

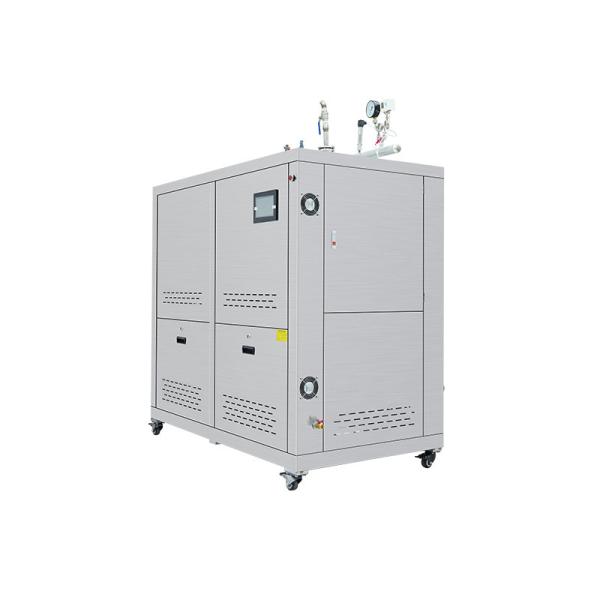

Product Name: Gas Fired Module Furnace Steam Generator
Item No.: ZQJ-300KG-0.7Mpa
Characteristics:
1. Easy maintenance: daily maintenance, only need to drain once or twice a day when off work.
2. Low noise: quiet operation, effectively improving the working environment.
3. Convenient operation
4. Environmental protection: The emission of carbon monoxide is zero
5. Durable: all stainless steel material, overall reduction of material oxidation, long service life.
6. Small size: light and handy, easy to install, and does not occupy working space.
7. Safety: There are 6 major functions such as water cut, overheating, overtemperature, overpressure, Safety measures, all-round protection.
8. Wide applicability: suitable for catering industry, hospital disinfection, sauna, school canteen, greenhouse equipment, hair salons, dishwashers, food processing factories etc.
Technical Parameter
| Steam Generator Parameter Table | ||
| ZQJ-300KG-0.7Mpa | ||
| Rated evaporation capacity(kg/h) | 300 | |
| Steam Pressure(Mpa) | 0.7 | |
| Water Pressure(Mpa) | 0.5-0.8 | |
| Gas Pressure/Pa (LPG gas/Natural gas) | 2800/2000 | |
| Rated voltage(V) | AC220V-50Hz | |
| Steam temperature (℃) | 100-170℃(Adjustable) | |
| Gas consumption | LPG gas(kg/h) | 13.5 |
| Natural gas(Nm³/h) | 18 | |
| Dimension(mm) | 1650*950*1600 | |
| Steam outlet Spec. | DN15 flange*3 main outlet size DN25 flange) | |
| Water inlet Spec. | DN40 inner tooth | |
| Gas inlet Spec. | DN40 inner tooth | |
| Sewage outlet Spec. | DN40 inner tooth*3 | |
| Ignition mode | Intelligent pulse ignition | |
| Steaming time | 120-150s | |
| Water pump power | 750W*4 | |
| Fan power | 180W*4 | |
|
|
